Universal Speedball Monitor Mount

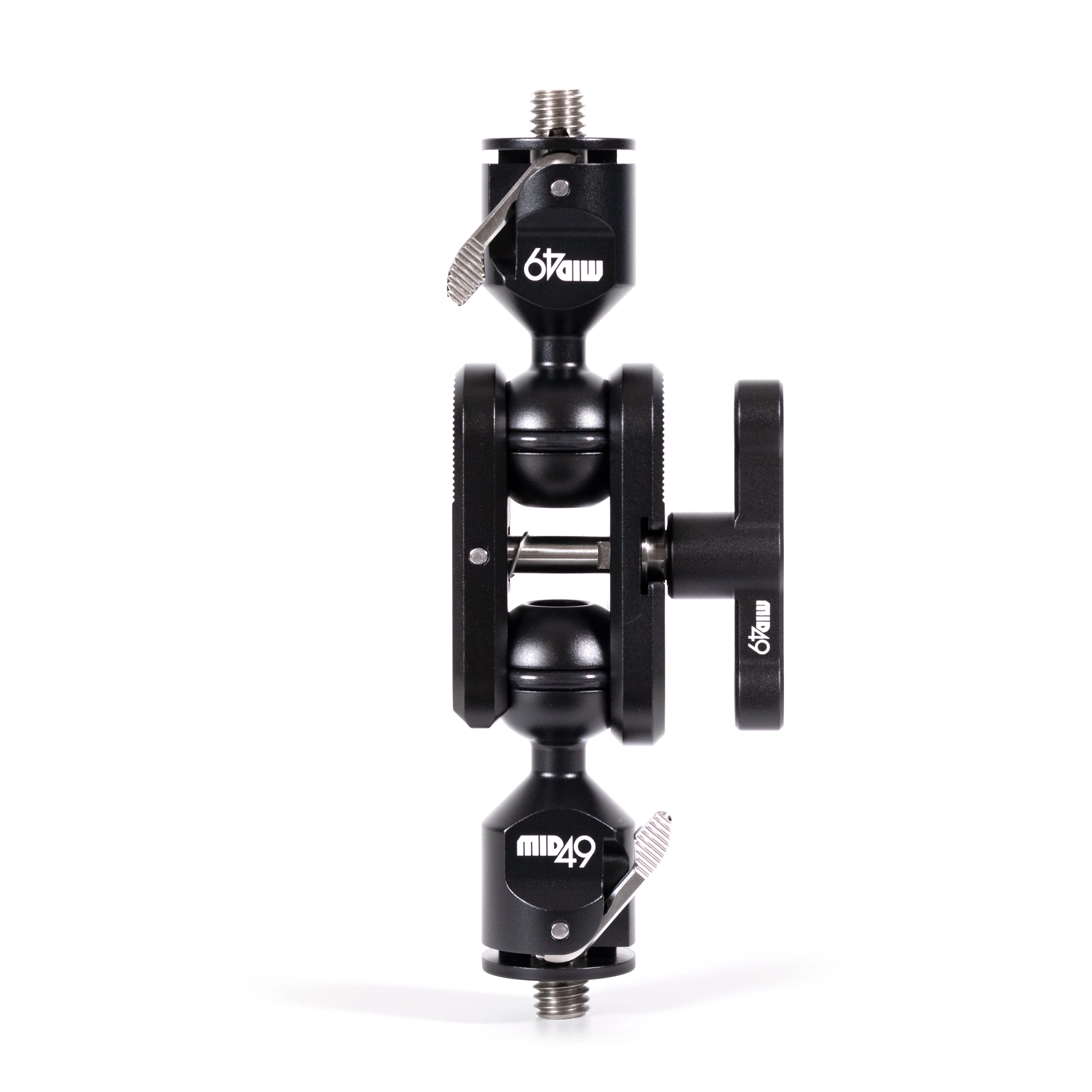

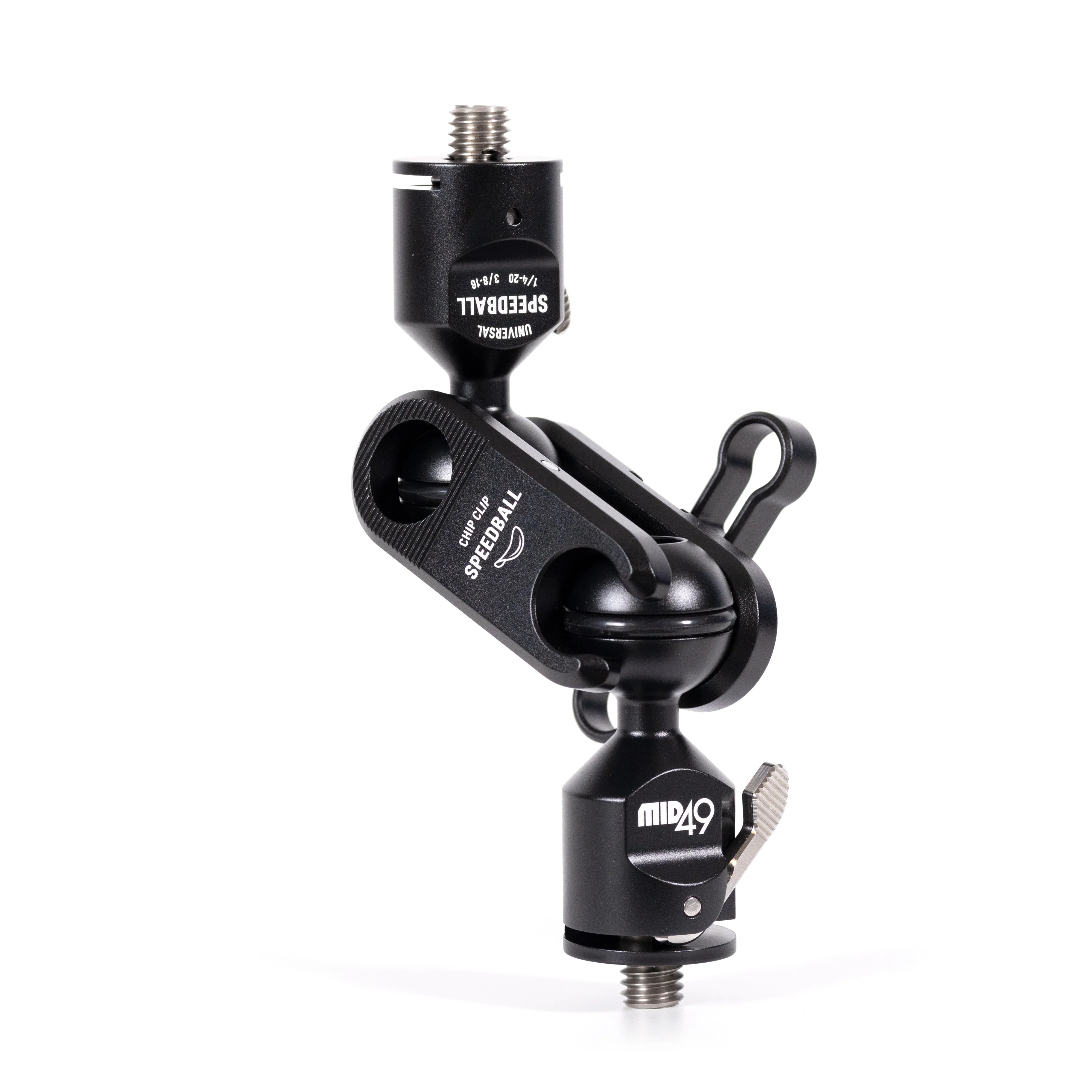

Universal Speedball MonitorĀ Mount is an articulating arm with combination 1/4-20 and 3/8-16 mounting screws on each end and one double-ball clamp.
Each ball end contains both mounting thread standards. Push the 3/8-16 outer screw down to reveal the hidden 1/4-20.
Install the ball with the cam-lever in the down position to finger-tight, then lift the lever to add extra locking force to the assembly. The extra force of the cam-lever design allows the arm to lock in place without the use of messy rubber pads.
The "Chip Clip" clamp design allows for easy, annoyance-free installation, and the ratcheting thumbscrew can be pulled out and repositioned.
Universal Speedball components are compatibleĀ with any other brand of 1 inch (25mm) ball attachment like Ultralight Control Systems, Wooden Camera, etc.
Ā
Product Weight:Ā 7.10oz (201g)
Product Dimensions (WxLxH):Ā 2.50Ā x 1.00 x 6.00in (63 xĀ 25 x 152mm)
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Universal Speedball MonitorĀ Mount is an articulating arm with combination 1/4-20 and 3/8-16 mounting screws on each end and one double-ball clamp.
Each ball end contains both mounting thread standards. Push the 3/8-16 outer screw down to reveal the hidden 1/4-20.
Install the ball with the cam-lever in the down position to finger-tight, then lift the lever to add extra locking force to the assembly. The extra force of the cam-lever design allows the arm to lock in place without the use of messy rubber pads.
The "Chip Clip" clamp design allows for easy, annoyance-free installation, and the ratcheting thumbscrew can be pulled out and repositioned.
Universal Speedball components are compatibleĀ with any other brand of 1 inch (25mm) ball attachment like Ultralight Control Systems, Wooden Camera, etc.
Ā
Product Weight:Ā 7.10oz (201g)
Product Dimensions (WxLxH):Ā 2.50Ā x 1.00 x 6.00in (63 xĀ 25 x 152mm)
