Rainbow Handle Kit

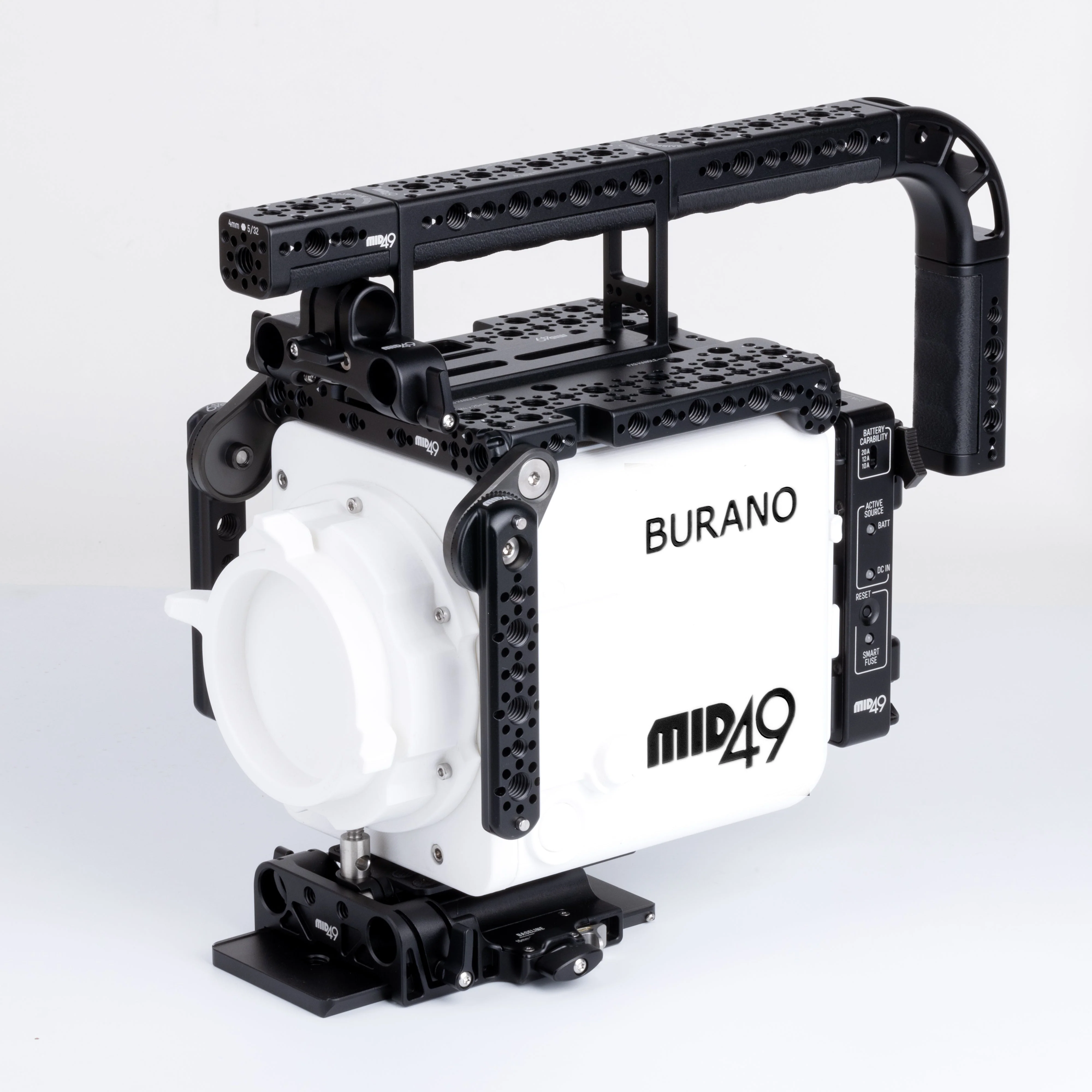

Rainbow Handle Kit is a modular handle system that can be configured in a variety of ways, including down behind the battery, commonly referred to as a Hollywood or Panavision-style handle.

The ARCA Swiss dovetail shape on the main handle section interfaces with any MID49 Top Plate or Upper Cage, and many 3rd party ARCA clamps.

Multi-Function Rod Bracket (MFRB 15mm LW) is included in the kit and has lightweight spaced 15mm rod openings which run front to back, and a sideways 15mm rod opening allows users to attach viewfinder mounts or microphone shockmounts.

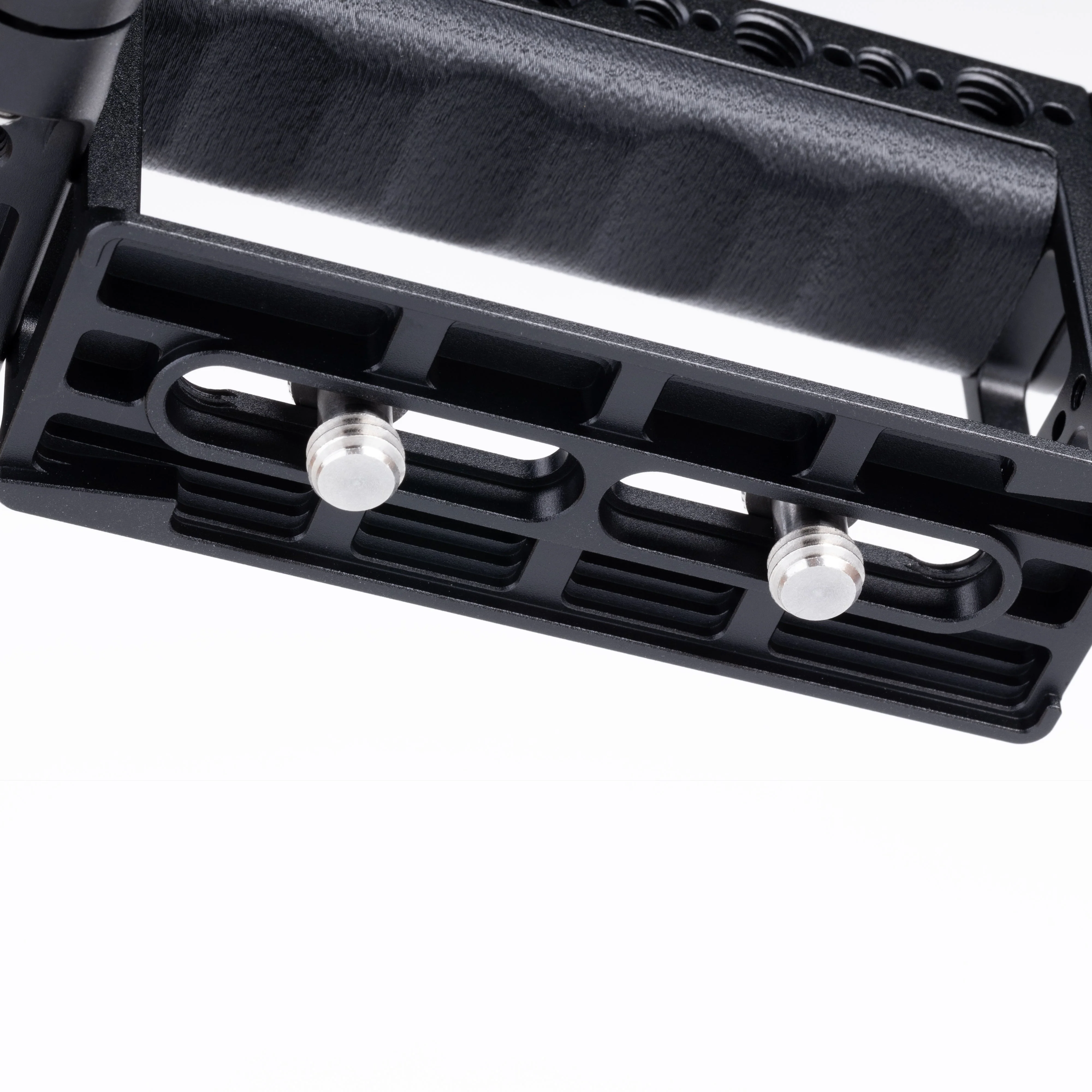

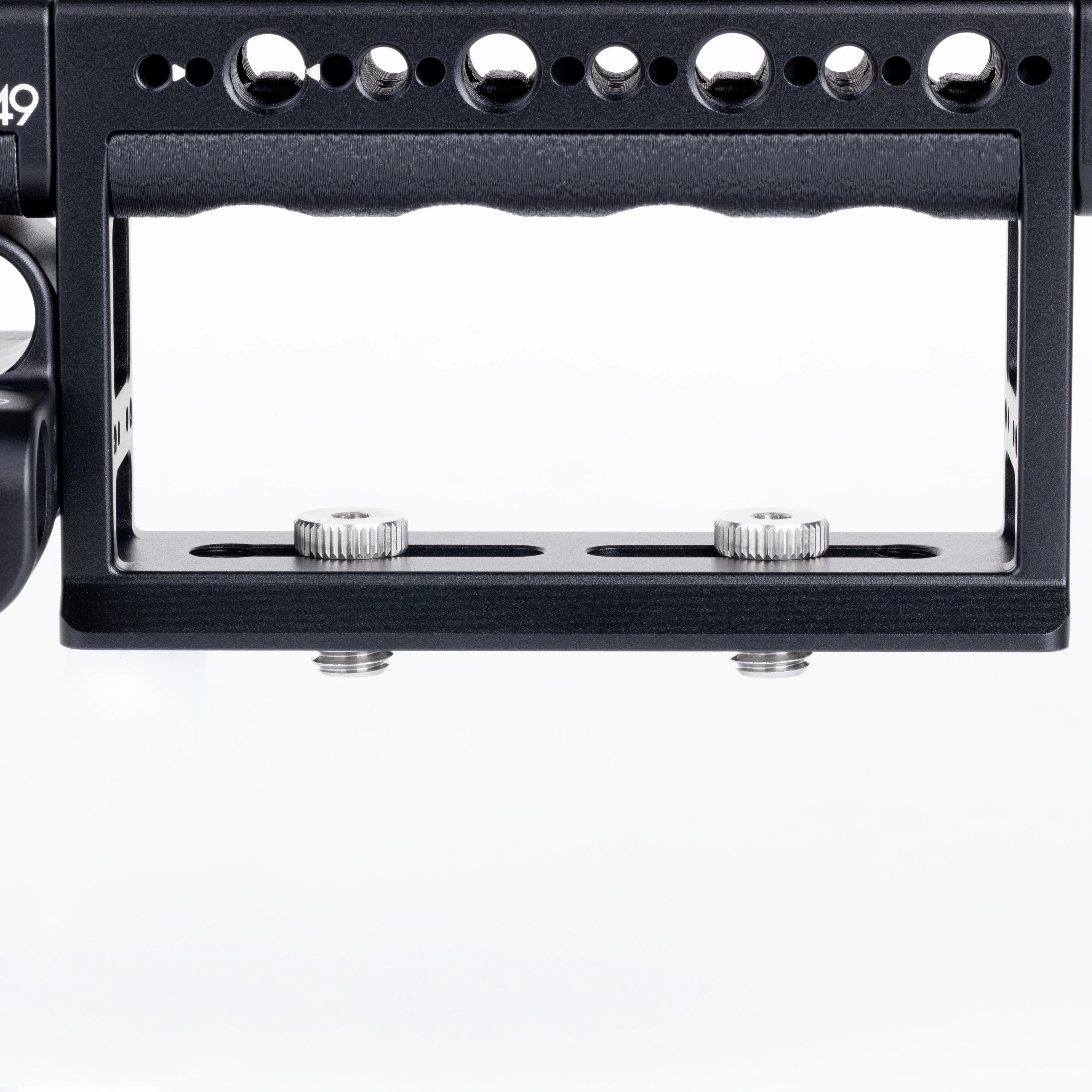

If additional support is needed for heavy camera builds, or if you want to skip the ARCA clamp, (2) 3/8-16 screws are included for attaching the Rainbow Handle directly to cheeseplates with 3/8-16 screws spaced up to 76mm apart, center to center.

50mm, 75mm, and 100mm sections include 1/4-20 and 3/8-16 threaded holes with ARRI locating pins and M4x20mm holes in many places.

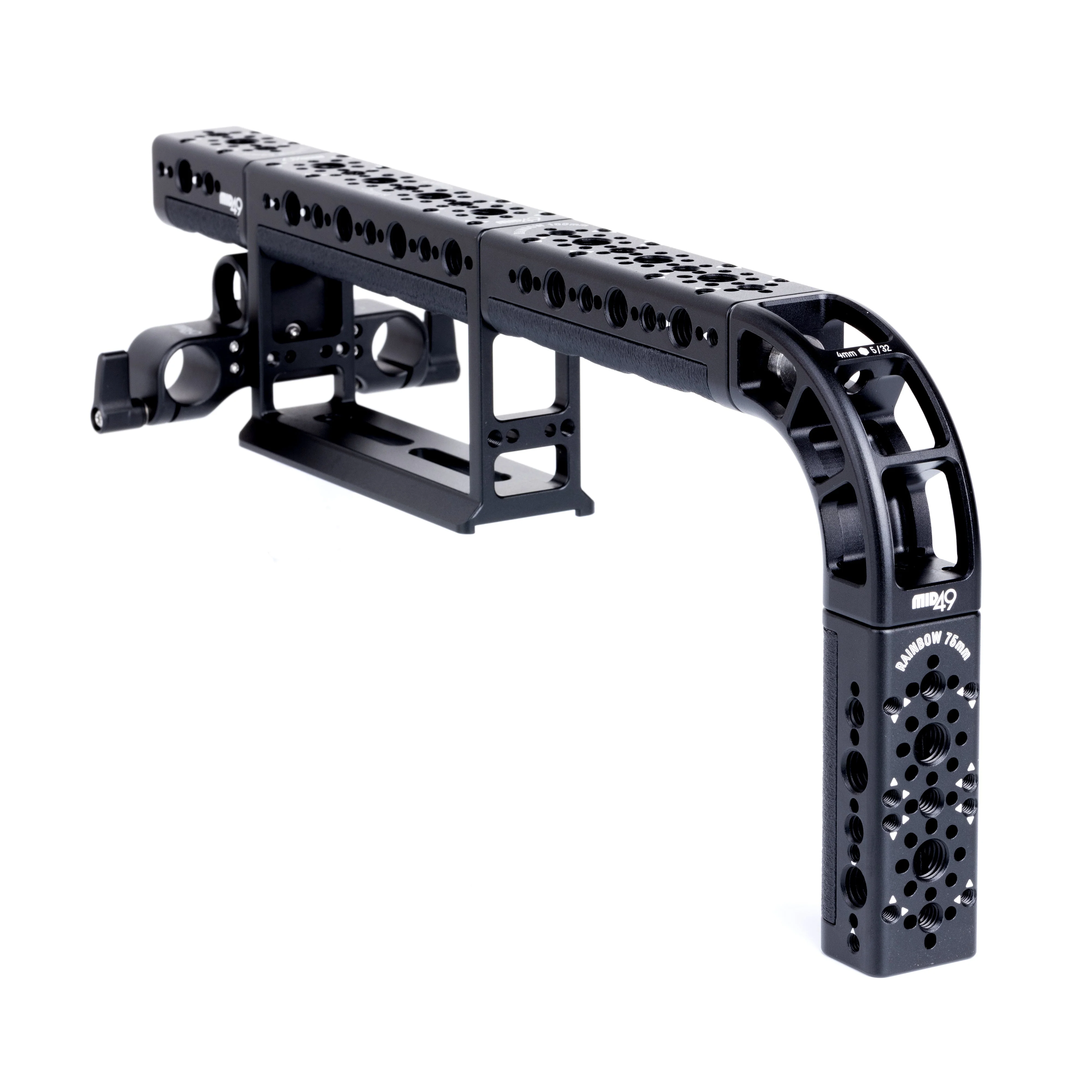

The Bend piece turns the handle downward by 90 degrees, and the bottom has a 3/8-16 threaded hole with ARRI locating pins and M4x20mm holes.

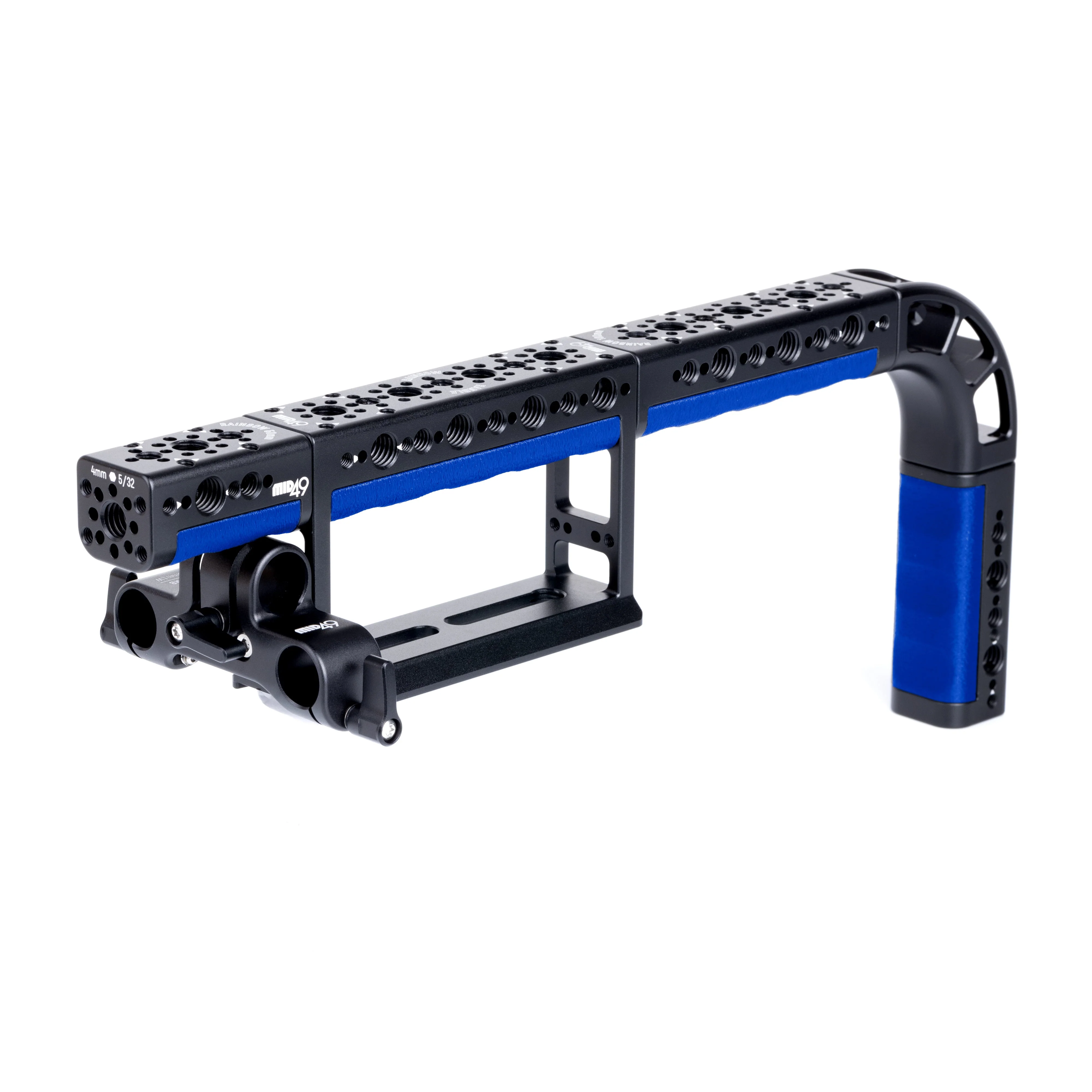

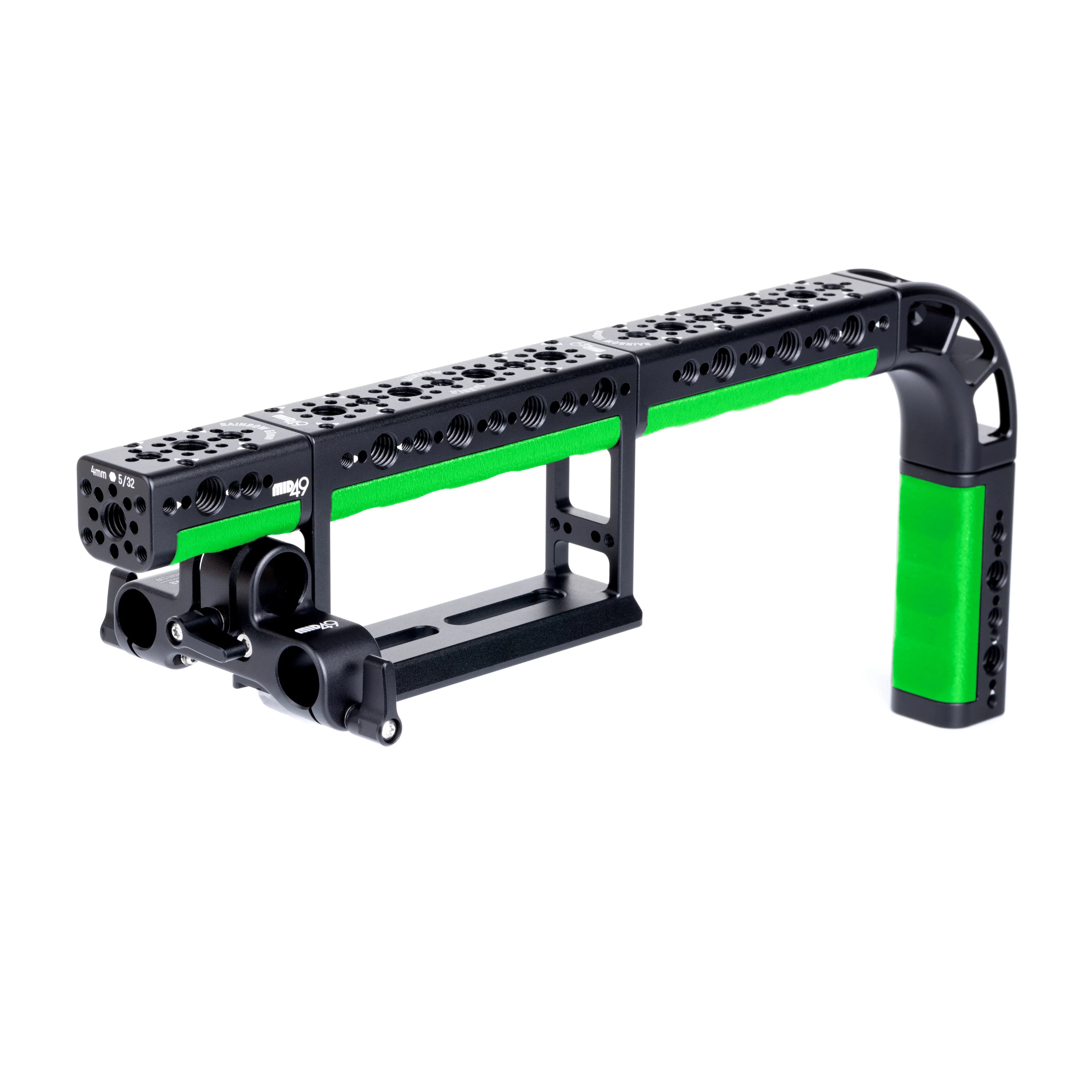

Rainbow Handle grips are interchangeable and available in standard A, B, C, D camera colors as well as some additional fun ones.

If you have a specific color you'd like us to match, send us an email: [email protected]

Product Weight: 16.7oz ( 474g)
Product Dimensions (WxLxH):  6.0 x 6.0 x 4.3 in (152 x 152 x 109mm)
