OptoLink 2 Fiber Detachable Dual Link DVI Extender
OptoLink 2 Fiber Detachable Dual Link DVI Extender

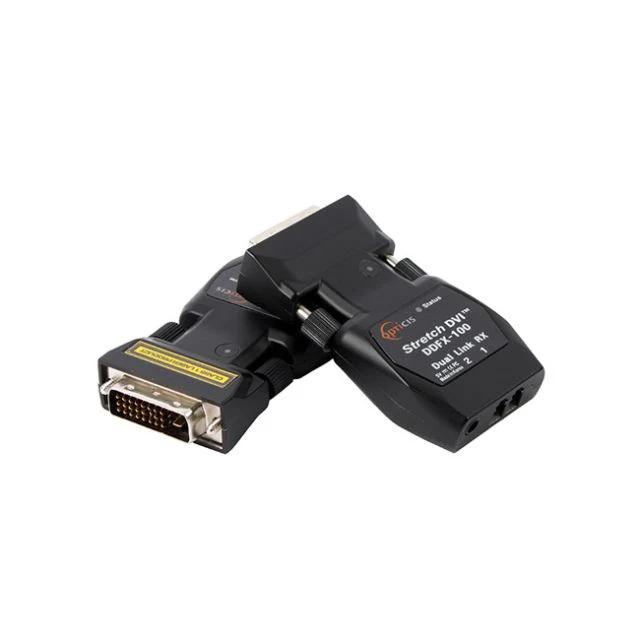

New optical dual link DVI extender, DDFX-100-TR is designed compact enough for its transmitter and receiver to be directly plugged to your PC and displays. The DDFX-100 demonstrates same mechanical dimension for each of transmitter and receiver, and enables transparent transmission through the digital uncompressed video data of dual link DVI, WQXGA (2560x1600) at 60Hz or WQUXGA (3840x2400) at 33Hz refresh ratio using leading-edge OPTICIS technology that transmits seven (7) data channels over two (2) LC multi-mode fibers.
At such data bandwidth, DDFX-100 can extend up to 500 meters (1,640feet), and 300 meters (984 feet) with OM1 fiber, which is much over the limits of copper wire extension, without any distribution amplifier or repeater. The transmitter is powered either through the DVI pin from the PC or by a +5V power adaptor with an auto-power switching circuit. The receiver needs a +5V power adaptor to drive.
For better installation flexibility, an unique patent pending feature so called as Self-EDID management is implemented in the transmitter. Through this technique, EDID is emulated in the display by just plugging the transmitter before the installation.
Original: $2,457.00
-70%$2,457.00
$737.10Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
OptoLink 2 Fiber Detachable Dual Link DVI Extender
New optical dual link DVI extender, DDFX-100-TR is designed compact enough for its transmitter and receiver to be directly plugged to your PC and displays. The DDFX-100 demonstrates same mechanical dimension for each of transmitter and receiver, and enables transparent transmission through the digital uncompressed video data of dual link DVI, WQXGA (2560x1600) at 60Hz or WQUXGA (3840x2400) at 33Hz refresh ratio using leading-edge OPTICIS technology that transmits seven (7) data channels over two (2) LC multi-mode fibers.
At such data bandwidth, DDFX-100 can extend up to 500 meters (1,640feet), and 300 meters (984 feet) with OM1 fiber, which is much over the limits of copper wire extension, without any distribution amplifier or repeater. The transmitter is powered either through the DVI pin from the PC or by a +5V power adaptor with an auto-power switching circuit. The receiver needs a +5V power adaptor to drive.
For better installation flexibility, an unique patent pending feature so called as Self-EDID management is implemented in the transmitter. Through this technique, EDID is emulated in the display by just plugging the transmitter before the installation.
