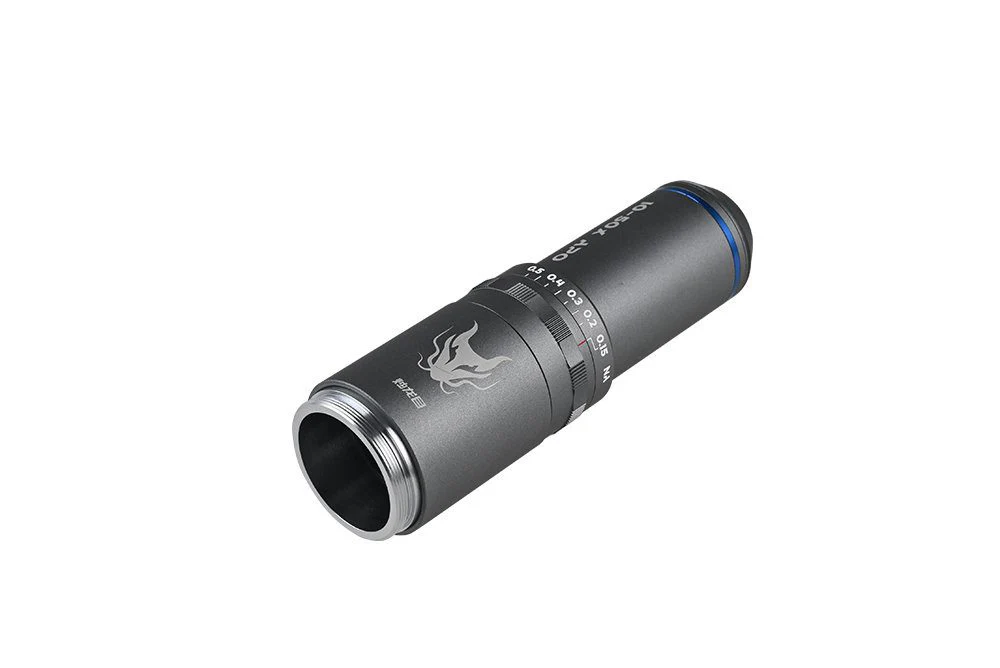

Laowa Aurogon FF 10-50X NA0.5 Supermicro APO

Laowa Aurogon FF 10-50X NA0.5 Supermicro APO
Magnification	10x	20x	35x	50x
Adjustable numerical aperture（NA）	0.5/0.45/0.4/0.35/0.30/0.25/0.2/0.15
Working distance (mm)	20
Maximum objective diameter (mm)	50
Length of objective lens (mm)	167
Weight of objective lens (g)	390
Aperture blades	9
Wavelength range (nm)	435-656
Objective lens+tube lens focal length (mm)	18.8	10.3	6.85	5.56
Special tube lens for Laowa model	10X Magnification tube	20X Magnification tube	35X Magnification tube	50X Magnification tube
Maximum diameter of tube lens (mm)	70
Length of tube lens (mm) (excluded cover)	112	163	210	253
Weight of tube lens (g)	377	444	530	609
Maximum distortion	0.60%	0.80%	0.40%	0.40%
Image field diameter	Full frame (24mm×36mm)
Conjugate distance (mm)	299.4	370	420.2	465.1
Mount	PL / EF / F / E / RF / Z / L / GFX

.fusion-body .fusion-builder-column-8{width:100% !important;margin-top : 0px;margin-bottom : 20px;}.fusion-builder-column-8 > .fusion-column-wrapper {padding-top : 0px !important;padding-right : 0px !important;margin-right : 1.92%;padding-bottom : 0px !important;padding-left : 0px !important;margin-left : 1.92%;}@media only screen and (max-width:1024px) {.fusion-body .fusion-builder-column-8{width:100% !important;order : 0;}.fusion-builder-column-8 > .fusion-column-wrapper {margin-right : 1.92%;margin-left : 1.92%;}}@media only screen and (max-width:640px) {.fusion-body .fusion-builder-column-8{width:100% !important;order : 0;}.fusion-builder-column-8 > .fusion-column-wrapper {margin-right : 1.92%;margin-left : 1.92%;}}

.fusion-body .fusion-flex-container.fusion-builder-row-6{ padding-top : 0px;margin-top : 0px;padding-right : 0px;padding-bottom : 0px;margin-bottom : 0px;padding-left : 0px;}

Select Mount

From $450.00

Original: $1,500.00

Laowa Aurogon FF 10-50X NA0.5 Supermicro APO—

$1,500.00

$450.00
