Product Highlights

- Features multiple DC outputs.

- Can charge a Battery.

- Aerospace Grade Aluminum.

- 15mm rod connectors.



Key Features

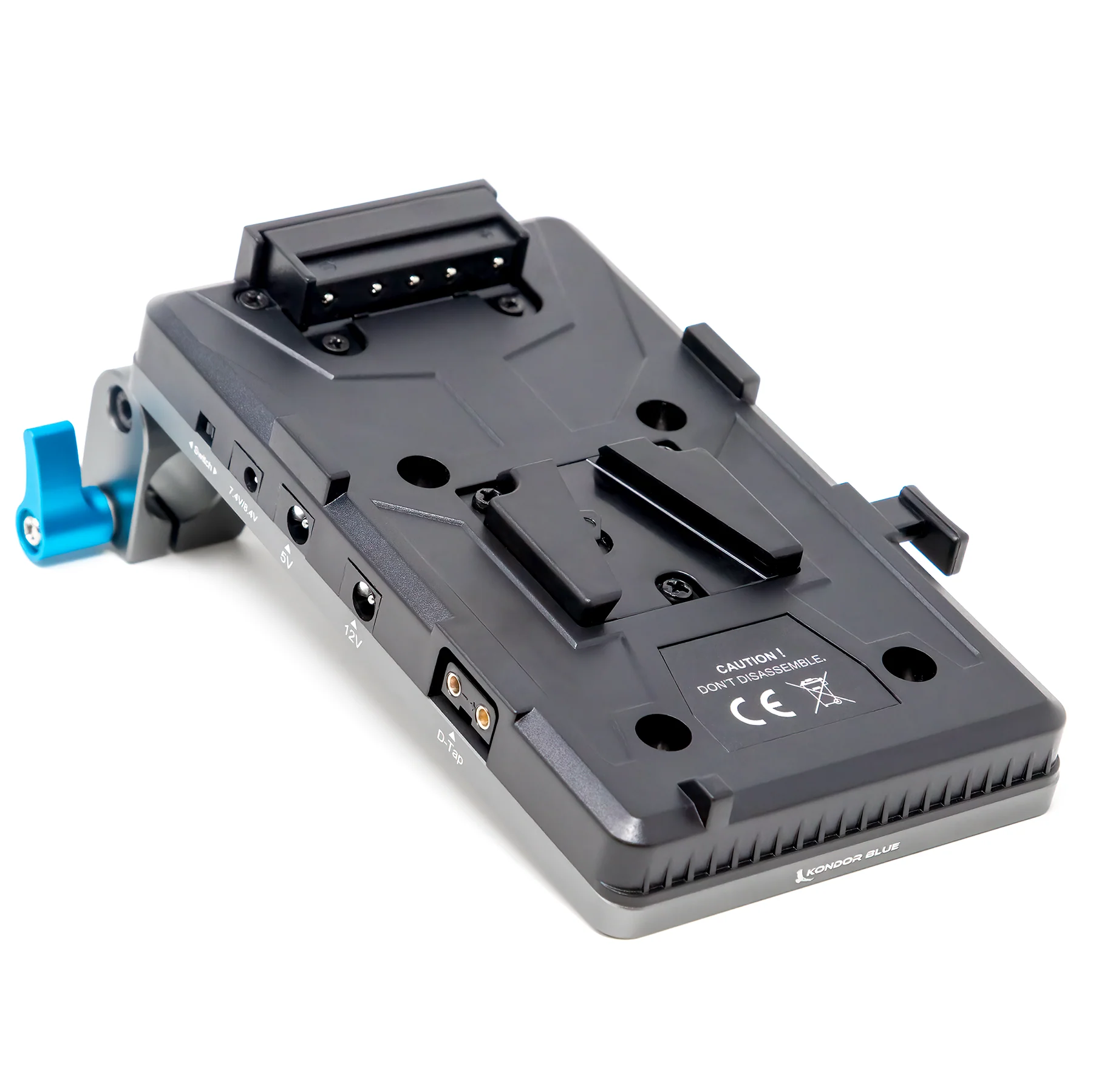

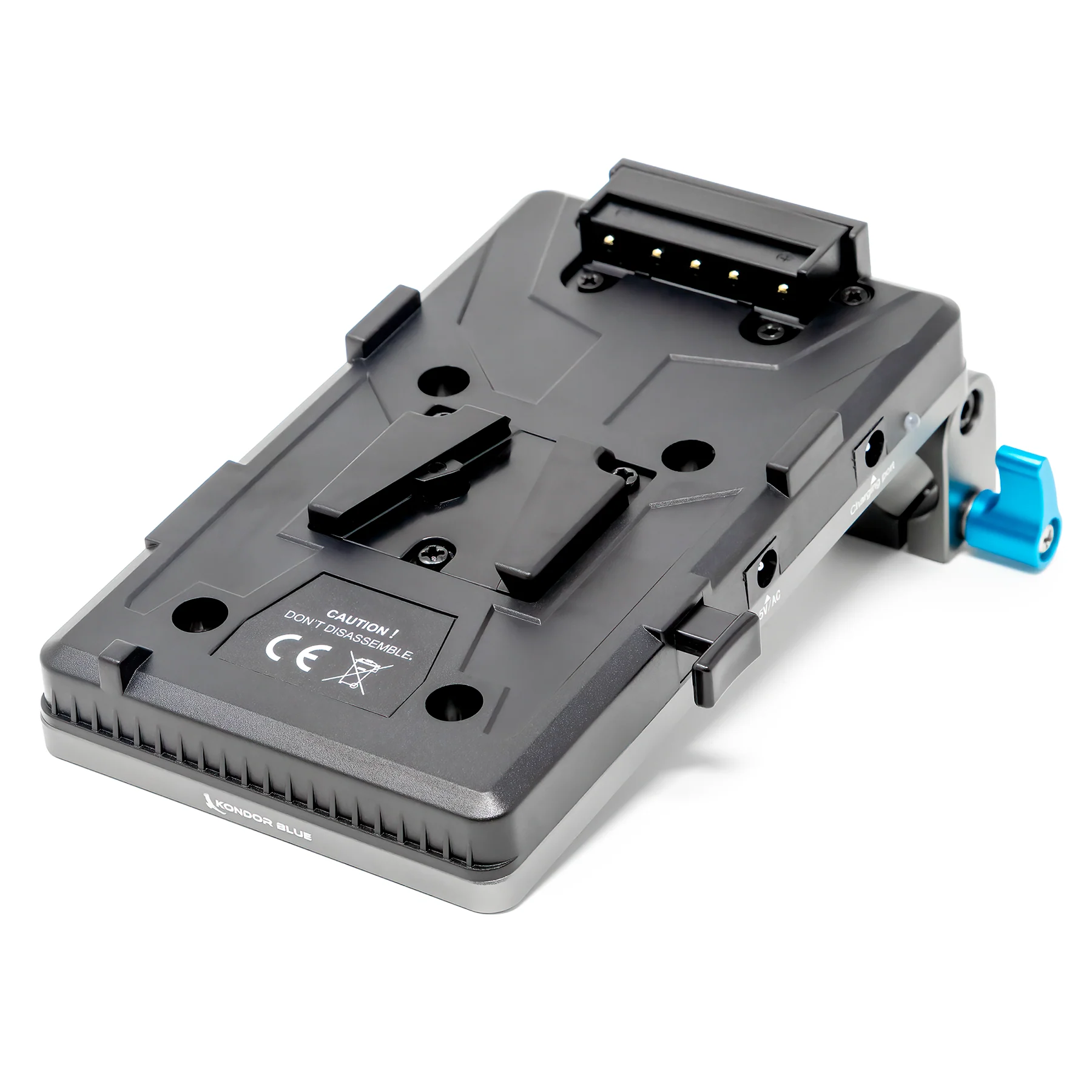

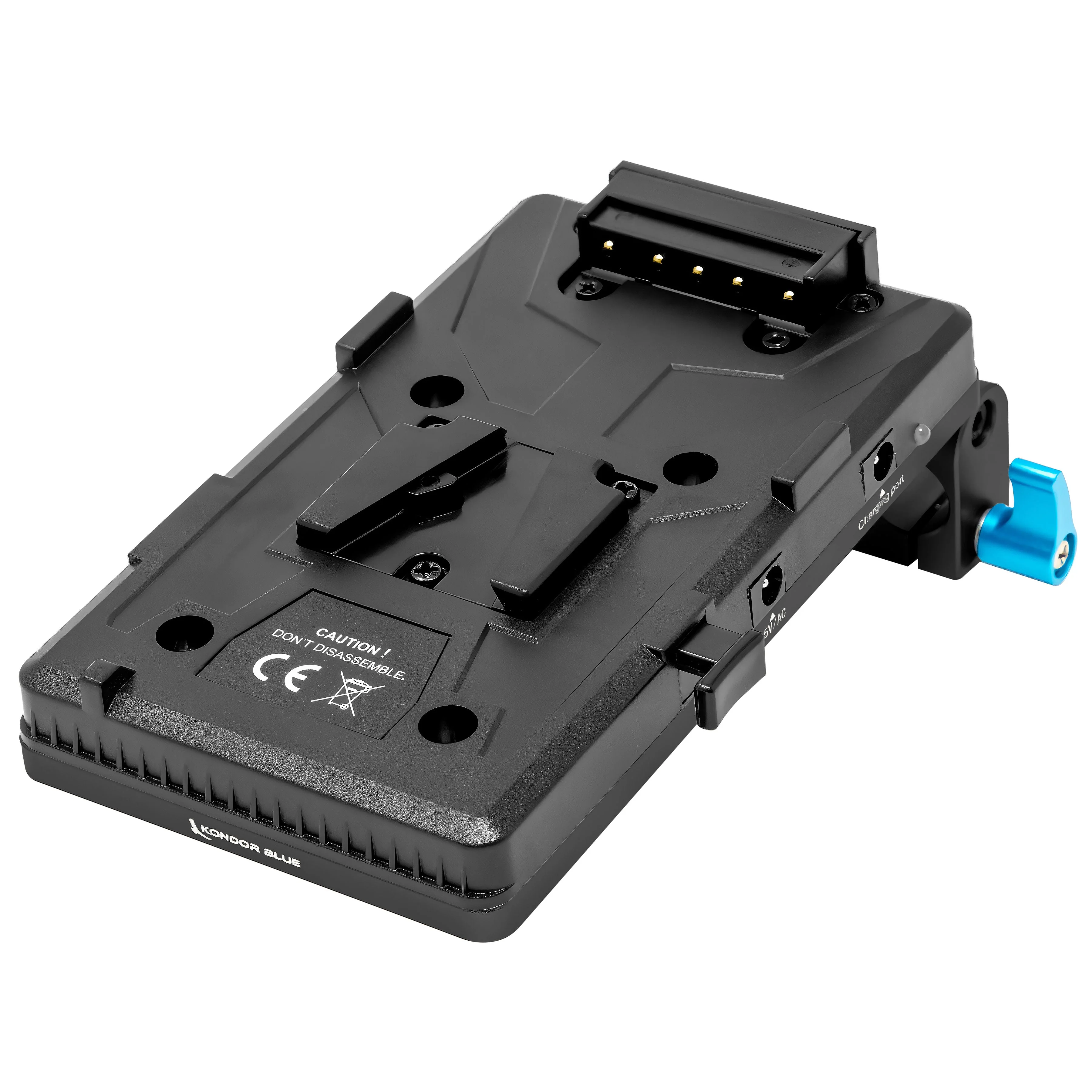

• Our Thin V-Mount Battery Plate features multiple DC outputs (5, 7.4, 12, 15V, and a D-Tap), enabling you to power multiple devices simultaneously.

• Battery Plate also features two 15mm rod connectors, allowing you to mount it to an existing rig via two blue locking levers. 15mm rods are sold separately.

• The plate includes a switchable 7.4/8.4V 1.35mm barrel output, a 5V 2.5mm barrel output, a 12V 2.5mm barrel output, and a D-Tap output.

• The 2.5mm DC barrel charger input allows you to charge the mounted battery with our AC Charger Cable (sold separately). This port will also allow you to power your plate and accessories if no battery is mounted.  (BLINKING light means charger cable is plugged in but no battery is mounted; GREEN light means the battery is fully charged; RED light means Battery is charging)

• Power Input:

1. DC Jack: 19V

• Power Output:

1. D-Tap: 14.4V
2. DC Jack: 15 V
3. DC Jack: 12 V
4. DC Jack: 7.4 to 8.4 V
5. DC Jack: 5 V



Dimensions

• Dimensions: 6” x 3.3” x 1.8”

• Weight: 9.6 oz
