Breakout Side Plate for RED V-Raptor

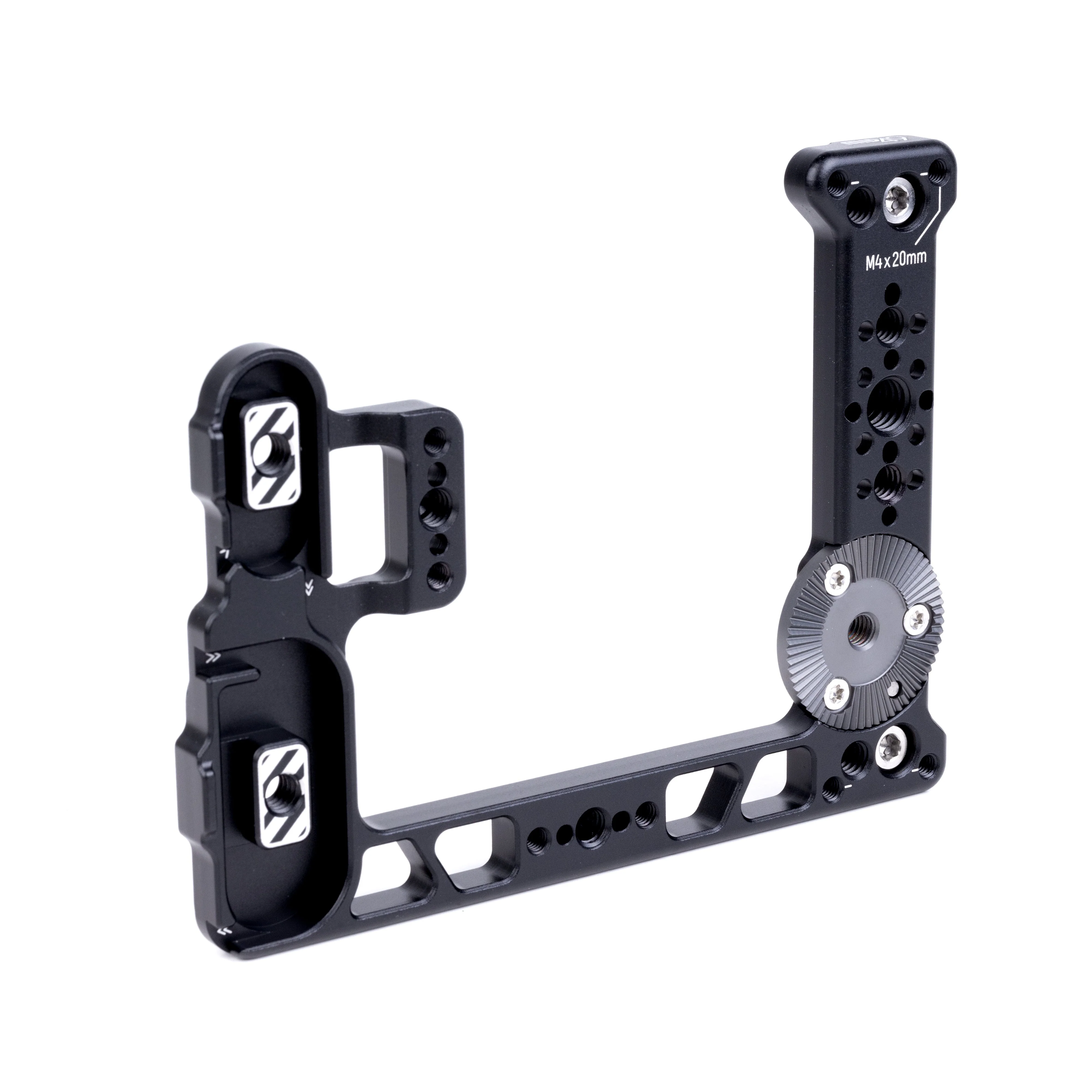

Breakout Side Plate for RED V-Raptor attaches to the side of the RED V-Raptor and provides 1/4-20, 3/8-16 with ARRI locating pins, an ARRI standard rosette, and M4x20mm threaded holes. Two offset 1/4-20 holes matching RED's spacing allow certain 3rd party products to be attached like GDU Atlas Side Handle (Raptor, Right). Rear 1/4-20's provide ideal mounting locations for Audio Breakout AB-1 (V-Raptor) and EXT Breakout EB-1 .

Recessed cable loops in the side plate allow for clean cable management.

The side plate compatibility with other manufacturer's accessories is below:

Manufacturer	Compatibility Notes
8Sinn	Replaces side plate
Bright Tangerine	Replaces side plate
Came-TV	Replaces side plate
Ignite Digi	Incompatible with Keystone
Kondor Blue	Replaces side plate
Modern Film Tools	Replaces side plate
Octamas	Replaces side attachments
RED/CS	Replaces side plate and EXT side bar
Smallrig	Replaces side plate
Tilta	Replaces side plate and EXT function of power module
Vocas	Incompatible with top plate

Please find the installation video here

Product Weight: 3.60oz (102g)
Product Dimensions (WxLxH): 5.41 x 4.25 x 0.47in (137 x 108 x 12mm)
