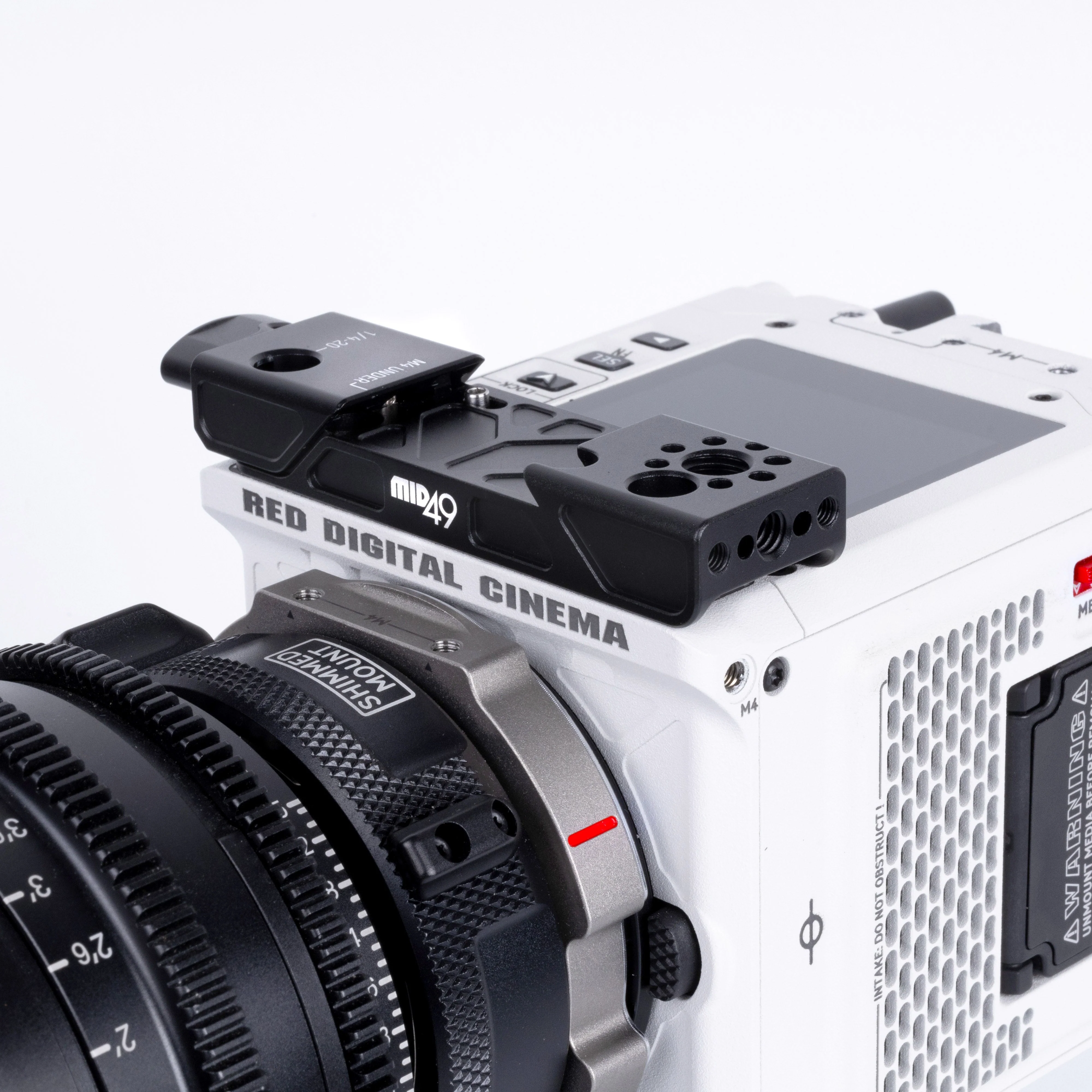

ARCA Top Mount (RED Komodo, Komodo-X, V-Raptor)
Using the center ARCA Swiss standard slot,Ā ARCA Top HandleĀ and ARCA Top Plate (114mm) can be top-loaded or installed from the back by sliding in. When sliding in from the back, a safety pin will engage with a pop when properly installed. Adjust the position, then lock the ratcheting thumbscrew. Top-loading can be achieved by loosening the thumbscrew, pulling out on the ratcheting knob, and turning the thumbscrew until ARCA clamp has opened fully. Reverse the process to tighten. Ā Note that for the V-Raptor, it is only compatible with the forward set of top screw holes.
Top mount also has 1/4-20, 3/8-16 with ARRI locating pins, and M4x20mm holes for mounting accessories.
If you would like to use this on the Kinefinity MAVO mark2, you will also need the Top Mount Adapter (Kinefinity MAVO mark2)
Product Dimensions (WxLxH):Ā 1.10Ā x 4.24Ā x 0.60in (28 x 108 x 15mm)
